Getting Docker up and running on a RaspberryPi

· 1571 words · 8 minute read
blog
docker · raspberrypi · linux · kernel · aufs · lxc · go · raspbian

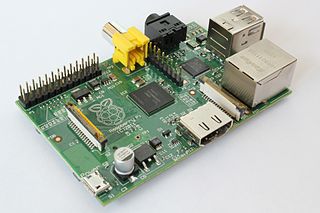

This year I attended PyCon US and I was lucky enough to get a FREE RaspberryPi. At the same conference dotCloud (The company I work for), was giving a lightning talk for a project that we have been working on, called Docker. Docker is a tool that allows you to better manage your Linux Containers (LXC). Shortly after I got the RaspberryPi, I started wondering if it would be possible to run Docker on it.

image{.img-polaroid}

I did some digging and technically speaking the Pi should be able to run Docker, it satisfies all of the requirements.

  • Linux
  • LXC
  • AUFS
  • Go

Getting it up and running isn’t going to be easy. The Linux kernels that come with the different Linux distros for the RaspberryPi, are kind of old, and don’t come with AUFS built in. The RaspberryPi also runs on an ARM based chip, and it is only 32bit. Currently Docker only supports 64bit OS’s. There are plans to add 32 bit support in the future, but it isn’t there yet.

Doing some research I was able to find blog posts on how to get LXC and AUFS up and running on the RaspberryPi. Using those guides, I was able to make some progress but I’m not all of the way there yet. I’m hoping to describe my steps here so that others can see what I have done, and if they want, help me get over the hump.

Goals

My goals for the project is to:

  • provide a prebuilt image that people can download that has everything they needed in order to get started.
  • I also want to provide a prebuilt kernel, people can download and use without having to build their own.
  • Port Docker to 32bit so that it will run on RaspberryPi and provide a Debian package for easy install.

Instructions

Here are the steps that I used to make it so that my RaspberryPi could run Docker. These are still a work in progress, so please let me know if you have any issues, or you found a better way to do this.

Install Linux OS

  1. Download Raspbian and make an SD card (I used the 2013-02-09-wheezy-raspbian.zip image)
  2. Once you have the SD card, put it in the Pi and boot it up.

Update and Prepare Raspbian

  1. Switch to Root User on the Pi. These commands must be run as root. You can also use “su” or “sudo”, what ever you prefer:
$ sudo su root
  1. Expand to fill SD card and reboot after entering:
$ raspi-config
  1. Update Raspbian
$ apt-get update

$ apt-get dist-upgrade
  1. Install git
$ sudo apt-get install git-core
  1. Update Firmware

The clone will take a while. You might consider cloning on a desktop machine to save time. Just transfer the firmware/boot and modules/ directories from your desktop PC to the Pi after the checkout. Be aware that checking out on some OS’s that are case insensitive, may result in some files being missing. If you see funky issues, this might be the cause.

$ cd /opt

$ git clone git://github.com/raspberrypi/firmware.git

$ cd firmware/boot

$ cp * /boot

$ cd ../modules

$ cp -r * /lib/modules

$ reboot
  1. Increase the Swap File Size

I found that in order to check out the source on the Pi, you’ll need a swap file with the 256MB Pi, otherwise it will run out of RAM during the checkout (with fatal: index-pack failed).

# use your favorite editor here.
$ pico /etc/dphys-swapfile

# change to 500 (MB)

$ sudo dphys-swapfile setup

$ sudo reboot
  1. Prepare to Build Kernel

We are going to use the 3.6 kernel since it is the lastest stable one. There is an effort to get 3.8 working, it isn’t 100% there yet, for more info see.

The clone will take a while. Again, you may consider using a desktop PC. Of course, if you do that, you’ll need to issue the “zcat” command from your Pi and copy the resulting “.config” file to the “linux” directory on your desktop PC.

$ cd /opt

$ mkdir raspberrypi

$ cd raspberrypi

$ git clone git://github.com/raspberrypi/linux.git

$ cd linux

$ zcat /proc/config.gz > .config
  1. Decrease the Swap Space File
$ pico /etc/dphys-swapfile

# change to 100 (MB)

$ sudo dphys-swapfile setup

$ sudo reboot
  1. Install Packages for Kernel Compilation
$ apt-get install ncurses-dev
  1. Adding AUFS Patches
$ cd /opt/raspberrypi/linux

git clone git://aufs.git.sourceforge.net/gitroot/aufs/aufs3-standalone.git
cd aufs3-standalone
git checkout origin/aufs3.6
cp -rp *.patch ../
cp -rp fs ../
cp -rp Documentation/ ../
cp -rp include/ ../
cd ..

patch -p1 < aufs3-base.patch
patch -p1 < aufs3-proc_map.patch
patch -p1 < aufs3-standalone.patch
patch -p1 < aufs3-kbuild.patch

If you get this error

root@raspberrypi:/opt/raspberrypi/linux# patch -p1 < aufs3-kbuild.patch
patching file fs/Kconfig
patching file fs/Makefile
patching file include/linux/Kbuild
Hunk #1 FAILED at 66.
1 out of 1 hunk FAILED -- saving rejects to file include/linux/Kbuild.rej

Then you will need to manually update include/linux/Kbuild because the patch failed.

First I reverted change on the file, and manually added. the line (below) to line 66, below audit.h

header-y += aufs_type.h

here is my git diff:

diff --git a/include/linux/Kbuild b/include/linux/Kbuild
index fa21760..ee029e3 100644
--- a/include/linux/Kbuild
+++ b/include/linux/Kbuild
@@ -66,6 +66,7 @@ header-y += atmppp.h
 header-y += atmsap.h
 header-y += atmsvc.h
 header-y += audit.h
+header-y += aufs_type.h
 header-y += auto_fs.h
 header-y += auto_fs4.h
 header-y += auxvec.h
  1. Configuring Kernel

You’ll now need to set some kernel options to support LXC, via the menu config tool.

$ cd /opt/raspberrypi/linx

$ make menuconfig

You need to enable these options:

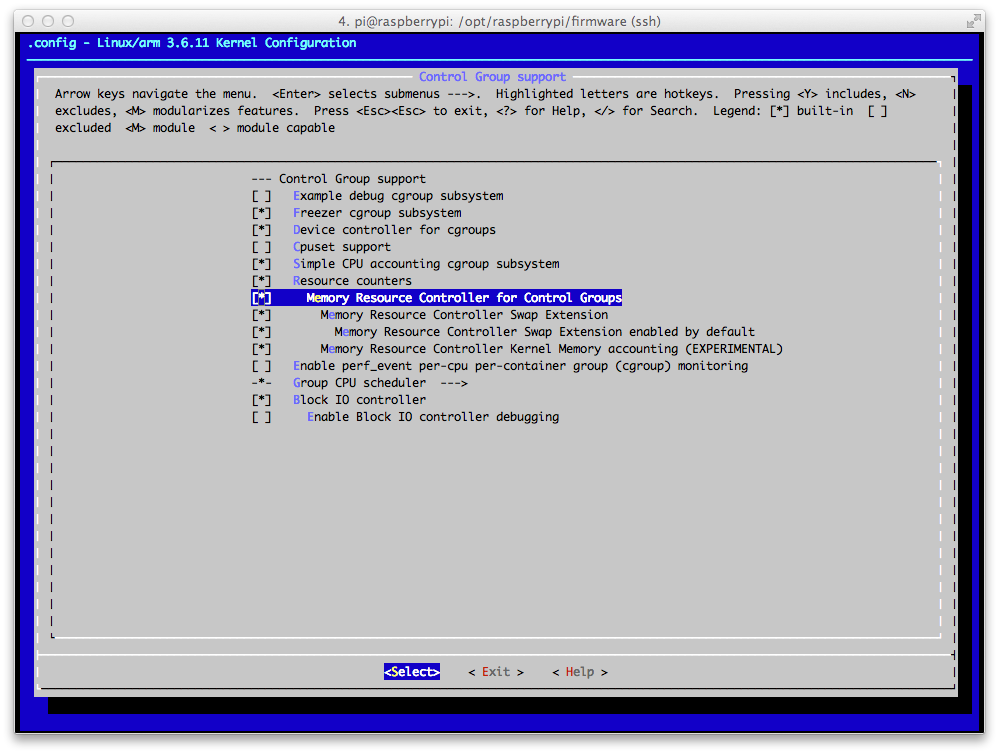

  • General -> Control Group Support -> Memory Resource Controller for Control Groups (and its three child options)

image{.img-polaroid}

(this has high overhead;only enable if you really need it, or else enable and remember to disable using the Kernel command line option “cgroup_disable=memory”) (image not shown)

  • General -> Control Group Support -> cpuset support

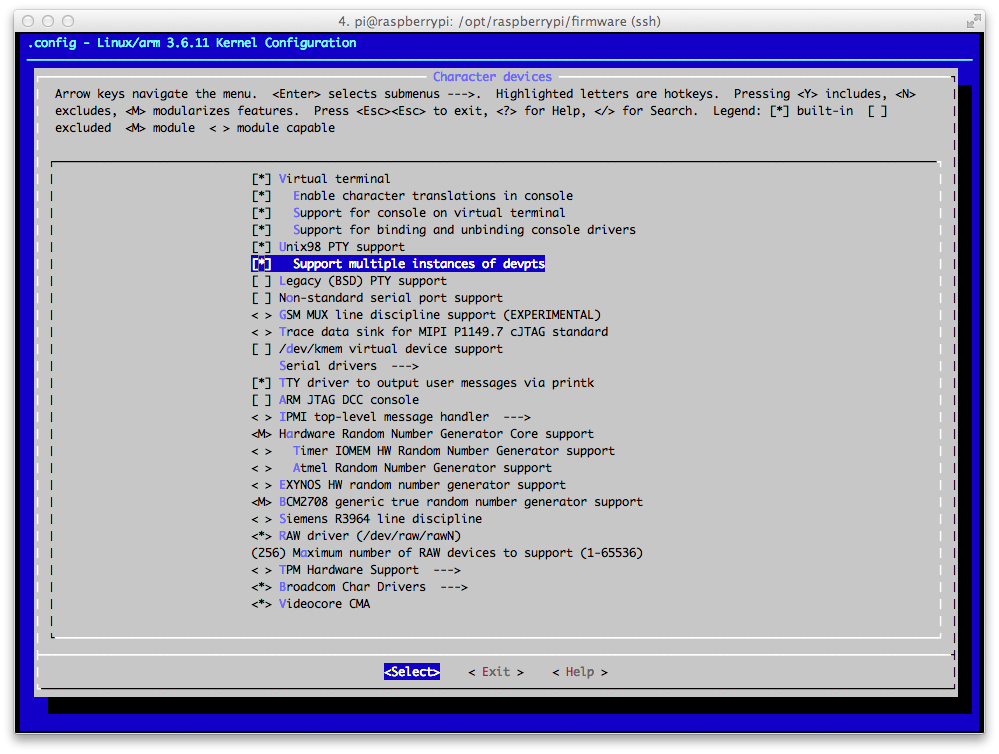

  • Device Drivers -> Character Devices -> Support multiple instances of devpts

image{.img-polaroid}

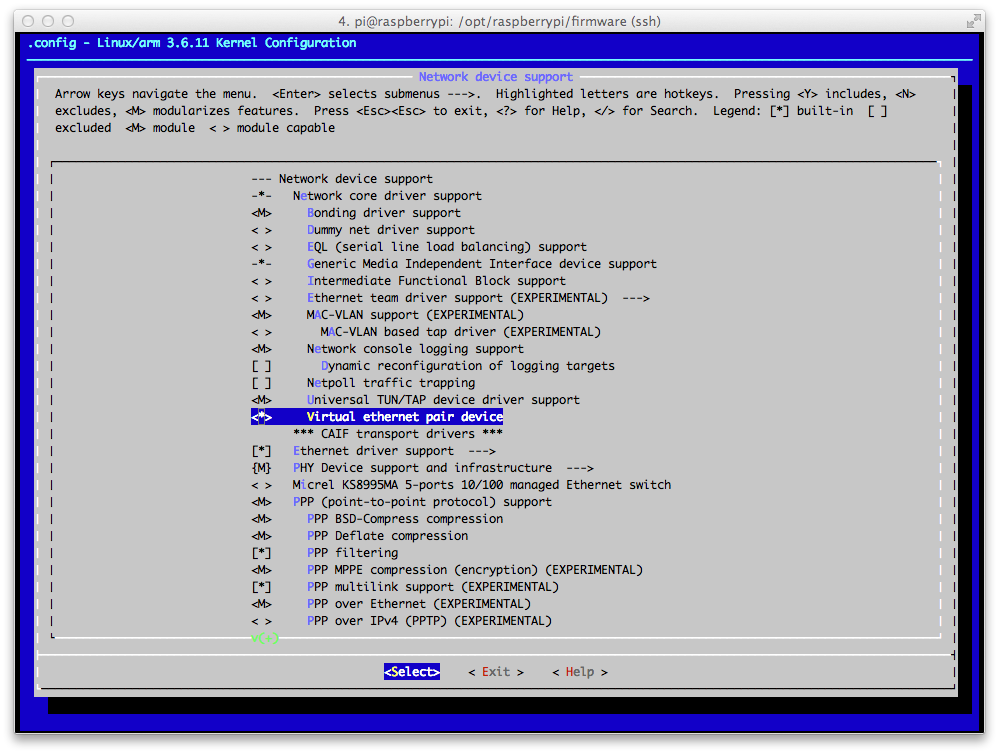

  • Device Drivers -> Network Device Support -> Virtual ethernet pair device

image{.img-polaroid}

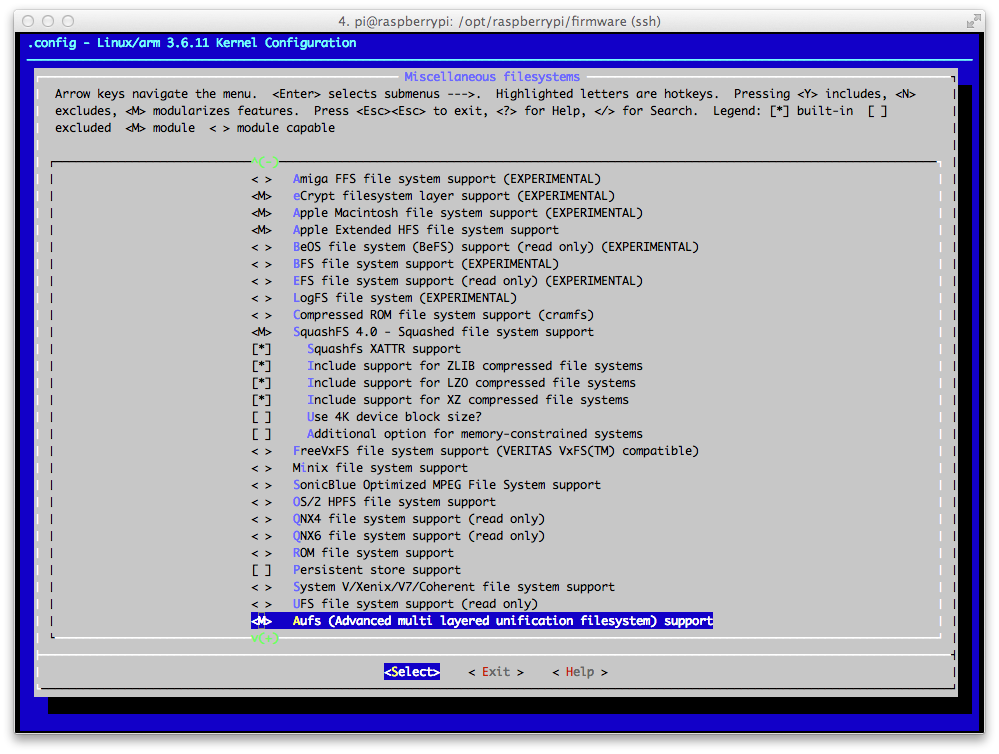

  • File Systems –> Miscellaneous filesystems ->select “Aufs (Advanced multi layered unification filesystem) support (NEW)” (mine was the the very bottom)

image{.img-polaroid}

  1. Build Kernel

This could take many hours if you compile on the Pi, there are ways to compile on another machine and transfer the kernel to the Pi when completed. If you are in a hurry, use this approach.

$ make

$ make modules_install

$ cd /opt/raspberrypi

$ git clone git://github.com/raspberrypi/tools.git

$ cd tools/mkimage

$ python ./imagetool-uncompressed.py /opt/raspberrypi/linux/arch/arm/boot/Image

$ cp /boot/kernel.img /boot/kernel-old.img

$ cp kernel.img /boot/

$ reboot
  1. Download Latest LXC

The LXC tools provided with Raspbian are out-of-date, so let’s update to the latest version.

$ mkdir /opt/lxc

$ cd /opt/lxc

$ git clone https://github.com/lxc/lxc.git

$ apt-get install automake libcap-dev

$ cd lxc

$ ./autogen.sh && ./configure && make && make install

Testing the Install

Check LXC is happy with your kernel:

$ lxc-checkconfig

User namespace should be “missing” (it checks for a kernel option that no longer exists) and Cgroup namespace should say “required”.

  1. Installing Go

If you install Go using the Go package that is available (apt-get install golang). You will get a floating point issue. For more information about the floating point issues see this page. http://www.raspberrypi.org/phpBB3/viewtopic.php?p=129647

To get it to work, we will compile Go from source. Feel free to change the location on where we are installing it.

$ sudo apt-get install -y mercurial gcc libc6-dev

$ hg clone -u default https://code.google.com/p/go $HOME/go
warning: code.google.com certificate with fingerprint 9f:af:b9:ce:b5:10:97:c0:5d:16:90:11:63:78:fa:2f:37:f4:96:79 not verified (check hostfingerprints or web.cacerts config setting)
destination directory: go
requesting all changes
adding changesets
adding manifests
adding file changes
added 14430 changesets with 52478 changes to 7406 files (+5 heads)
updating to branch default
3520 files updated, 0 files merged, 0 files removed, 0 files unresolved

$ cd $HOME/go/src
$ ./all.bash

ALL TESTS PASSED

---
Installed Go for linux/arm in /home/dfc/go
Installed commands in /home/dfc/go/bin

If there was an error relating to out of memory, or you couldn’t configure an appropriate swap device, you can skip the test suite by executing

$ cd $HOME/go
$ ./make.bash

as an alternative to ./all.bash.

The go command needs to be added to your \$PATH, you should also edit your profile script (.bashrc, etc) to include these changes.

$ export PATH=$PATH:$HOME/go/bin
$ go version
go version devel +30c566874b83 Wed May 08 16:06:25 2013 -0700 linux/arm
  1. Installing Docker
$ apt-get -y install wget bsdtar curl git

export GOPATH=~/docker/go/
export PATH=$GOPATH/bin:$PATH

$ mkdir -p $GOPATH/src/github.com/dotcloud
$ cd $GOPATH/src/github.com/dotcloud
$ git clone git://github.com/dotcloud/docker.git  # or clone your own fork/branch
$ cd docker

$ go get -v github.com/dotcloud/docker/...
$ go install -v github.com/dotcloud/docker/...

$ docker version
$ docker -d
The docker runtime currently only supports amd64 (not arm). This will change in the future. Aborting.

Docker is installed but due to current limitations it won’t run. It is a start, we now have a development environment to start hacking on Docker to get it to work with the RaspberryPi.

What’s Next

  • Now we have everything up and running, we need to change docker so that it will work on the ARM with only 32bit support.
  • I need to take my compiled kernel and make it downloadable to others
  • I need to make an SD card image of my setup for easy download, so that people can get started easier.

Want to Help?

If you want to help me with this, please send me a message on twitter @KenCochrane and also add your name to this Docker issue.
